Item number: 1304
1.Use corrosion-resistant FRP(fiberglass reinforced plastic) as enclosure material.
2.Drive system utilizes heavy-duty pulleys and bearings.
3. No maintenance required for the motor.
4. Can be mounted on steel columns, structural columns, or suspended from ceiling beams.
5. Optional variable frequency drive.

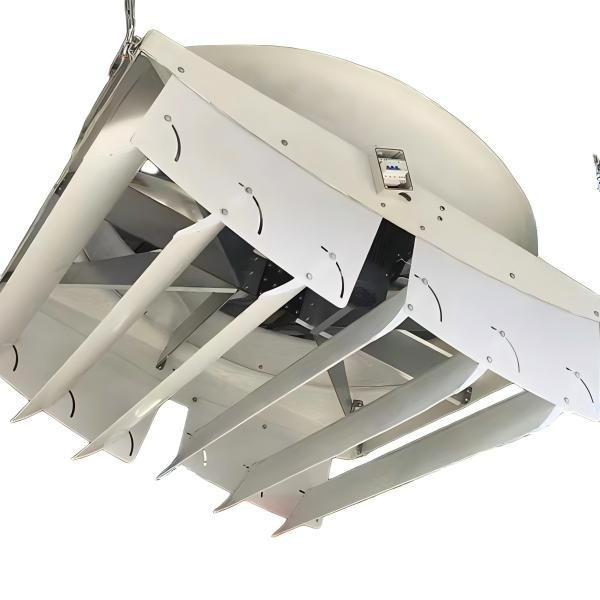

6. The 72-inch fan features six deflectors with adjustable angles for directional airflow.
7. Six corrosion-resistant, heavy-duty aluminum-alloy blades.
8. Using a variable frequency drive reduces energy consumption by 50%.
9. One-way ventilation covers an area of approximately 360 square meters (effective length of approximately 30 meters, effective width of approximately 12 meters)
Item number: 1304
1.Use corrosion-resistant FRP(fiberglass reinforced plastic) as enclosure material.
2.Drive system utilizes heavy-duty pulleys and bearings.
3. No maintenance required for the motor.
4. Can be mounted on steel columns, structural columns, or suspended from ceiling beams.
5. Optional variable frequency drive.
6. The 72-inch fan features six deflectors with adjustable angles for directional airflow.
7. Six corrosion-resistant, heavy-duty aluminum-alloy blades.
8. Using a variable frequency drive reduces energy consumption by 50%.
9. One-way ventilation covers an area of approximately 360 square meters (effective length of approximately 30 meters, effective width of approximately 12 meters)
Blade Dia | Voltage | Speed | Power | Air Flow | Height | Width | Thickness |
1830mm | 380V | 50-300 r/min | 2.2KW | 91000m³/h | 2000mm | 2000mm | 1000mm |
