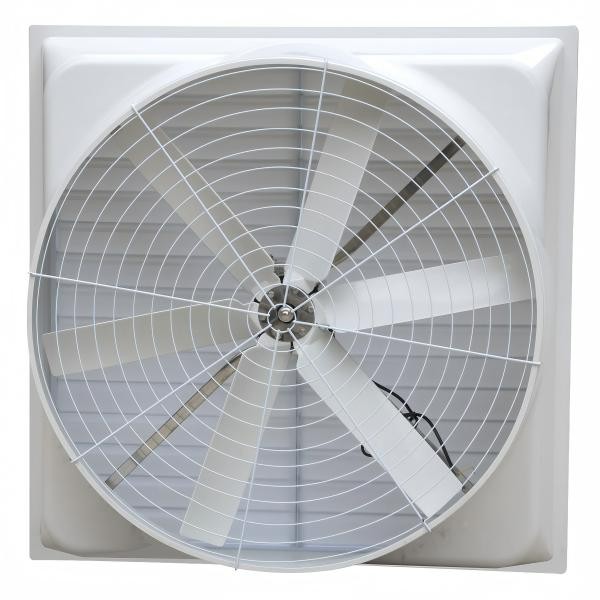

Fiberglass Exhaust Fan 1306

Item number: 1306
Fiberglass Exhaust Fan
1.The rational bell-mouth design provides low noise, high air volume, strong extraction force, and low operating costs.
2.Imported bearings offer high strength, low noise, and durability.
3.The PVC or aluminum louvers, which are synthesized based on the airflow principle, are resistant to oxidation, lightweight, non-deformable, flexible to open, and prevent air backflow.
4.The high-strength, multi-ribbed aluminum-magnesium alloy pulleys are lightweight, strong, and resilient.
5.Both belt-driven and direct-drive fans are available to effectively meet the needs of different sites.

Item number: 1306

Fiberglass Exhaust Fan

1.The rational bell-mouth design provides low noise, high air volume, strong extraction force, and low operating costs.

2.Imported bearings offer high strength, low noise, and durability.

3.The PVC or aluminum louvers, which are synthesized based on the airflow principle, are resistant to oxidation, lightweight, non-deformable, flexible to open, and prevent air backflow.

4.The high-strength, multi-ribbed aluminum-magnesium alloy pulleys are lightweight, strong, and resilient.

5.Both belt-driven and direct-drive fans are available to effectively meet the needs of different sites.

Item #	Blade Material	Blade number	Blade Dia	Voltage	Pole	Speed	Power	Air Flow	Height	Width	Thickness
1305	Nylon	3	1250mm	380V	8	750r/min	1.5KW	44000m³/h	1460mm	1460mm	580mm
1306	Fiberglass	6	1250mm	380V	10	550r/min	1.1KW	44000m³/h	1460mm	1460mm	580mm
1307	Cast Aluminum	3	1250mm	380V	8	750r/min	1.5KW	44000m³/h	1460mm	1460mm	580mm
